INTEK Modular Support

UL Listed Heavy Duty Sprinkler Clamp

Technical Specification:

• Material: Mild steel
• Electro-galvanized Zinc plating (Minimum 13micron)
• Dimension tolerance- ±3% (if not specified)
• Suitable for sprinkler & fire-fighting application

UL Listed Heavy Duty Clevis Hanger

Technical Specification:

• Material: Mild steel
• Electro-galvanized Zinc plating (Minimum 13micron)
• Dimension tolerance- ±3% (if not specified)
• Suitable for fire-fighting application

UL Listed Heavy Duty Pipe Clamp

Technical Specification:

• Material: Mild steel
• Electro-galvanized Zinc plating (Minimum 13micron)
• Dimension tolerance- ±3% (if not specified)
• Cam be used in cold as well as hot application
• Lining Composition: EPDM Rubber Hardness: Shore A 60-75

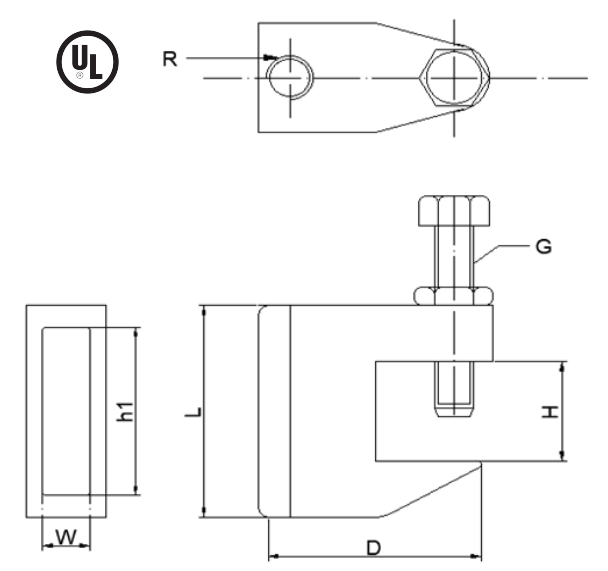

UL Listed Heavy Duty Beam Clamp

Technical Specification:

• Material: Mild steel
• Electro-galvanized zinc plating (Minimum 8 micron)
• Dimension tolerance- ±3% (if not specified)

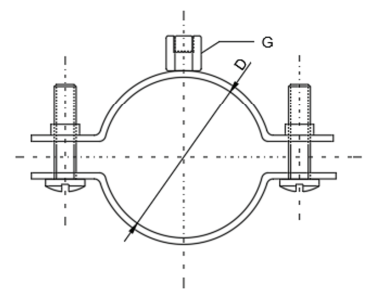

Plain & Rubber Lined Clamp

Technical Specification:

• Material: Mild steel
• Electro-galvanized as per ASTM B 633, also available with hot dipped galvanized
• Application: Both Horizontal & Vertical
• Locking mechanism: combi cross recessed head
• Supply with Swivel or Hexagonal nut
• Supply with or without rubber lining
• Noise reduction applicable only in rubber lined clamp

• Temperature range for rubber lined is -20 °C to +100 °C

• Temperature range for rubber lined is -20 °C to +100 °C

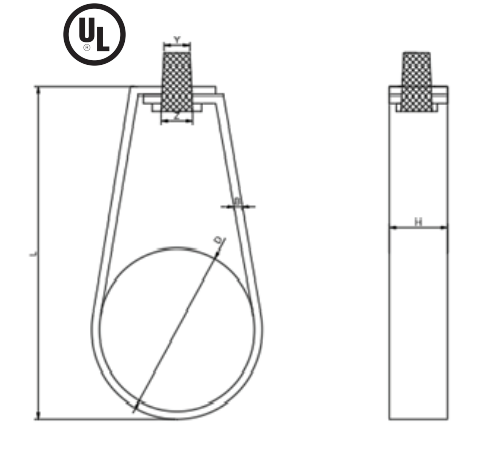

Sprinkler Clamp

Technical Specification:

• Material: Mild steel
• Electro-galvanized as per ASTM B 633, also available with hot dipped galvanized
• Design follows MSS standard SP 58 Type 10 and SP 69
• Suitable for sprinkler & fire-fighting application
• Heavy load capacity & vertical adjustment possible due to knurled nut
• Supply with or without rubber lining
• Noise reduction applicable only in rubber lined clamp

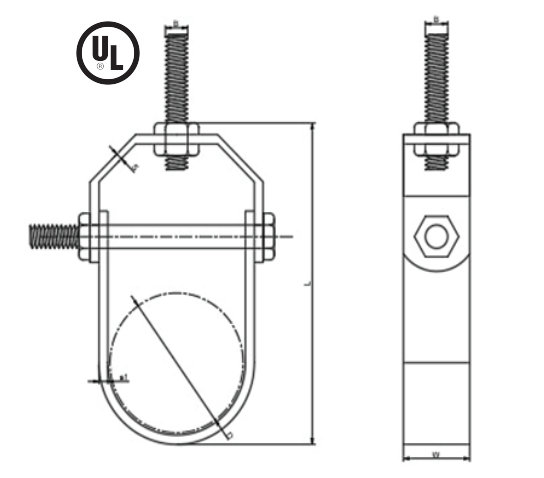

Clevis Hanger

Technical Specification:

• Material: Steel
• Electro-galvanized as per ASTM B 633, also available with hot dipped galvanized
• Design follow MSS standard SP 58 type 1 and SP 69
• Hanger nut shall be tightened securely to achieve to best performance
• Application: fire-fighting & chilled water pipe
• Vertical adjustment possible after application
• Supply with or without rubber lining & rubber support inserts

• Noise reduction applicable only in rubber lined clamp
• Temperature range for rubber lined is -20 °C to +100 °C

• Noise reduction applicable only in rubber lined clamp
• Temperature range for rubber lined is -20 °C to +100 °C

U-Strap

Technical Specification:

• Material: Steel
• Electro-galvanized as per ASTM B 633, also available with hot dip galvanized
• Design follow MSS standard SP 58 type 26 and SP 69
• Application: Insulated as well as plain pipes with rubber support inserts
• Supply with or without Rubber Lining & Rubber Support Inserts

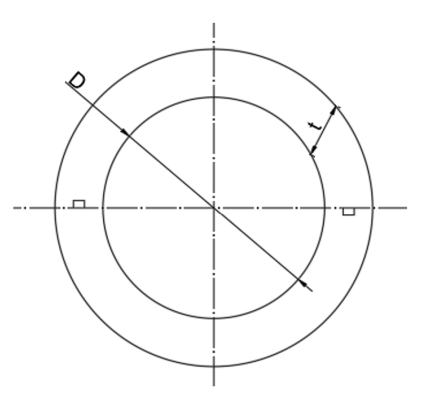

Rubber Support Inserts

Technical Specification:

• Density:1100-1600 kg/m3
• Thermal Conductivity: 0.16 w/m °C
• Temperature ranges from -20°C to 100°C
• Design as per BC3974-1:1974
• Application: Insulated pipe to avoid damage of insulation
• Dimensionally precise due to its design
• Dimension tolerance- ±3%
• Heavy load bearing capacity
• Very good resistance to deterioration/distortion
• Available with clevis hanger, U strap, Plain clamp & U bolt
• Pipe OD differs as per pipe schedule & type

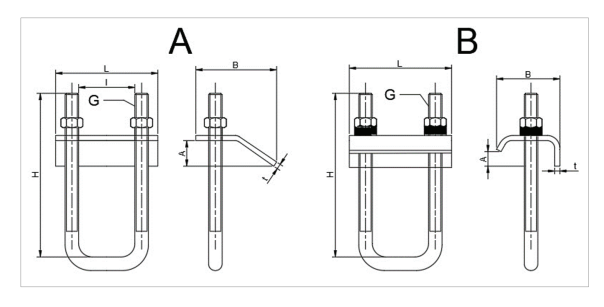

U-Bolt

Technical Specification:

• Material: Steel
• Electro-galvanized as per ASTM B 633, Also available with hot dipped galvanized
• Galvanized as per ASTM A 123/ A 123 M (only for without rubber lining)
• Design follow MSS standard SP 58 type 24 and SP 69
• Heavy load capacity
• Supply with or without EPDM & Rubber lining
• Noise reduction applicable only in rubber lined clamp
• Temperature range for rubber lined is -20 °C to +100 °C

Adjustable Roller Hanger

Technical Specification:

• Material: solid steel shaft for roller & steel for bracket
• Electro-galvanized as per ASTM B 633
• Design follows MSS standard SP 58-2000, type 43 and SP 69
• Vertical adjustment possible up to 6”
• Application: Chilled water pipe line where contraction & expansion may occur which require horizontal movement

Roller Chairs

Technical Specification:

• Material: Mild steel
• Electro-galvanized as per ASTM B 633
• Design follows MSS standard SP 58-2000, type 44 and SP 69
• Application: Chilled water pipes where contraction & expansion may occur which require horizontal movement

Beam Clamp

Technical Specification:

• Material: Malleable iron
• Electro-galvanized casting, tolerance as per DIN 1684
• Application: HVAC, Sprinkler, acoustic tube as well as sanitary installation.
• Threaded with Cup Point (RS) as per EN ISO 4753 and lock nut.
• Hexagon threaded head screw as per DIN938.
• For a solid fixing to steel connections up to 22mm flange thickness without welding or drilling.

Offset Clamp

Technical Specification:

• Material: Steel
• Electro-galvanized as per ASTM B 633
• Design follows MSS standard SP 58 type 24 and SP 69
• Suitable for application where pipe support required at offset distance from wall/structure
• Removing & reinstallation due to design changes is possible

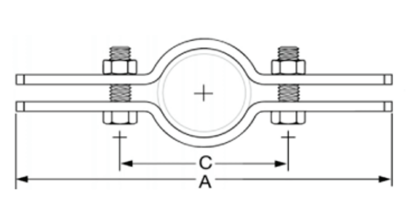

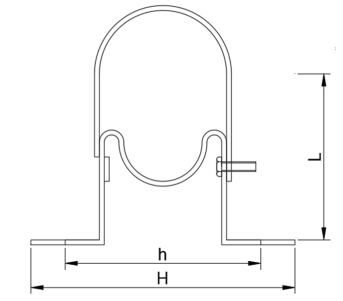

Riser Clamp

Technical Specification:

• Material: Steel
• Electro-galvanized as per ASTM B 633
• Design follows MSS standard SP 58 2002 type 8 and SP 69
• Application: As guide or rigid support for vertical pipes
• Suitable for use with all types of pipes

Rapid Rail Beam Clamp

Technical Specification:

• Material: Steel
• Available in Zinc Plated
• It is applicable for a solid fixing to steel Construction It doesn’t need the welding or drilling
• Always use two beam clamp per fixing.

Light Saddle

Technical Specification:

• Material: Steel
• Electro-galvanized as per ASTM B 633
• Design follows MSS standard SP 58 type 26 and SP 69
• Application: Pipe support to wall as well as ceiling in both vertical & horizontal application
• Light weight design makes fast & easy installation
• Maximum temperature: 343°C (650°F)

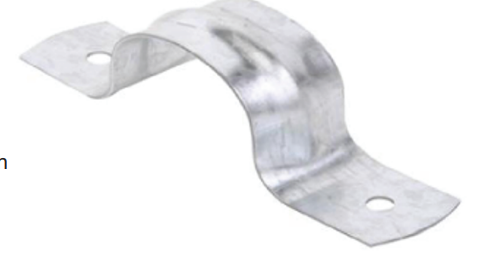

Half Saddle

Technical Specification:

• Material: Steel
• Electro-galvanized as per ASTM B 633
• Design follows MSS standard SP 58 type 26 and SP 69
• Application: Cable, Steel Pipe & Standard conduit on sides of beams or walls
• Not suggested for use of horizontally on beams, ceiling and similar application as factor of safety greatly reduced
• Maximum temperature: 343°C (650°F)

Rubber Hanger

Technical Specification:

• Powder coated square bracket design with neoprene rubber element

Duct Mount

Technical Specification:

• It consists of dampening rubber which is fixed between two steel plated caps
• Uniform load distribution due to its design
• It has extended rubber sleeve which avoid metal to metal contact. So, noise & vibration can reduce drastically

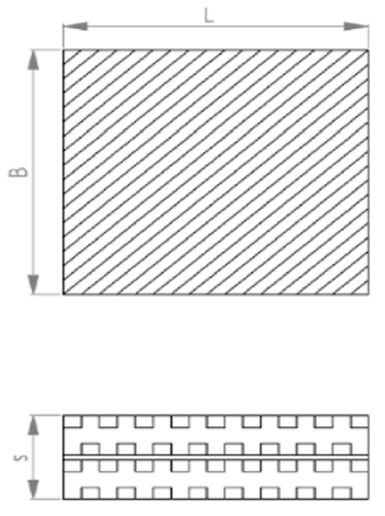

Anti-Vibration Pads

A) Ribbed Mounting Pads

• Alternate low and high Ribbed profile
• It can be easily cut into required size with the knife or shearing
• Simple Field Configuration
• Multilayers of ribbed mounting pads is suggested when larger deflection is required

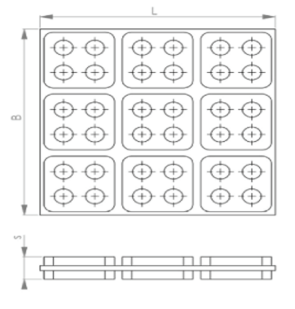

B) Waffle Pads

• It has integrated suction cup profile
• Eliminate requirement of bolting
• Easy cutting & fast installation enables job site flexibility

C) Cork Sandwich Pads

• It made of densely packed grained cork sheet sandwiched between two layers of ribbed mounting pads.
• It can drastically reduce noise and structural vibration
• It eliminates bolting
• Fast & easy application

D) Metal Sandwich Pads

• It made of metal steel plate sandwiched between vibration & ribbed pads
• Heavy load capacity due to its design

E) Ribbed Multilayer Pads

• It made of densely packed grained cork sheet sandwiched between two layers of ribbed mounting pads.
• It can drastically reduce noise and structural vibration
• It eliminates bolting
• Fast & easy application

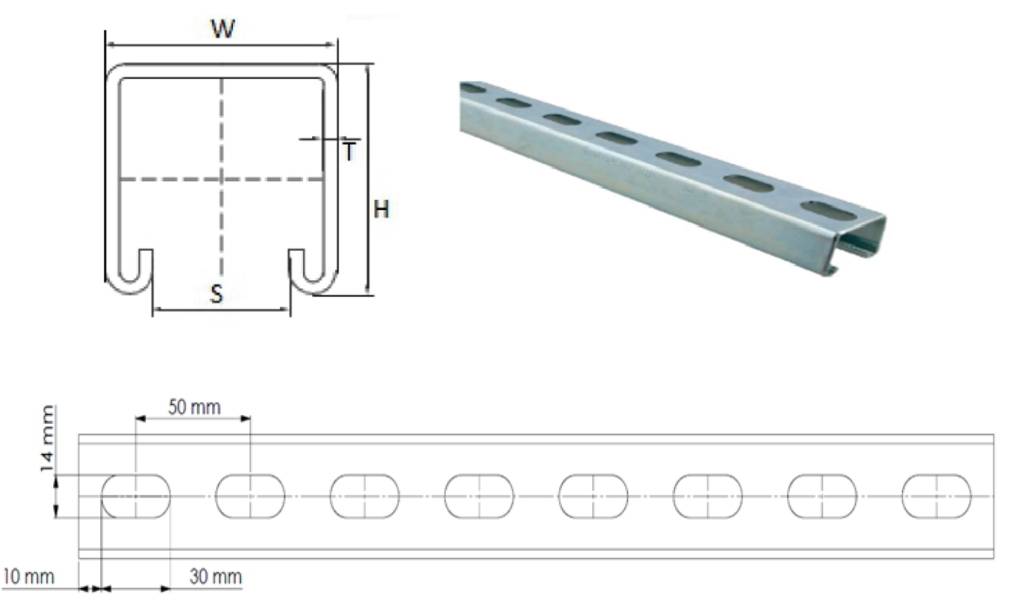

Support Channel

• Material: Steel
• Electro-galvanized as per ASTM B 633
• Continuous perforation profile (without perforation can be manufactured based on requirement)
• Yield strength: 240 N/mm2

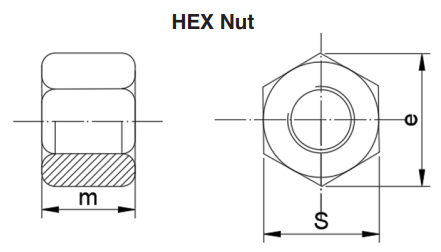

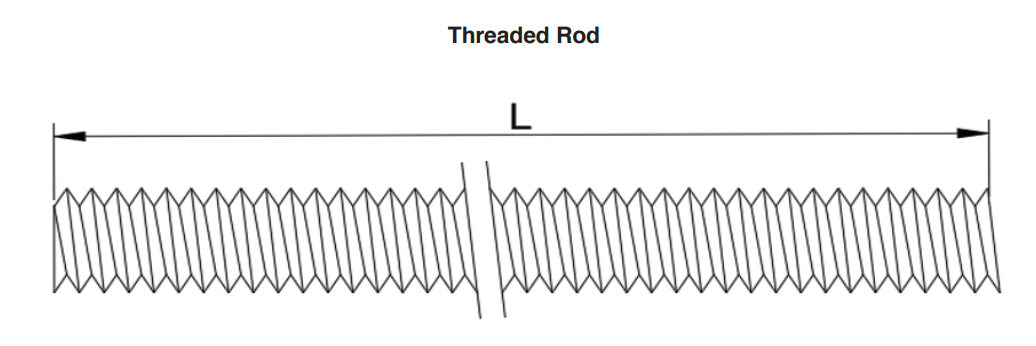

Threaded Rod & Hex Nut

• Material: Mild Steel
• Threads are as per UNC, Metric Coarse, 8UN, UNF, and Metric Fine
• Available sizes: M6 to M24
• Larger Size can be manufactured as per client requirement

Rail Nut/Spring Nut

• Material: Mild Steel
• Electro-galvanized as per ASTM B 633
• Design for tight fixing of accessories on channel/rail.
• Suitable for all types of strut rail

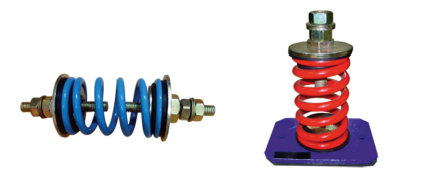

Anti-Vibration Systems

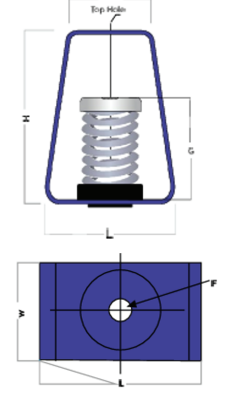

A) Spring Hanger
Technical Specification:

• It consists of vibration dampening steel spring which is combined with elastomeric element enclosed in hanger bracket. Spring hanger are designed to isolate equipment from structure. So that structure borne vibration as well as noise generation & travel can be reduced to minimum level.
• It ensures the stability because of its horizontal stiffness is at least 100% of its vertical stiffnes
• Spring Dia to Operating height ratio – 0.85 to 1 (As per ASHRAE guideline)
• Ideal for suspended equipment such as Air Handling Units, FCU’s Cabinet Fans, Rotating equipment
• Compliance - Springs designed according to BS 1726 (Part 1) and recommendations made by ASHRAE

B) Open Spring Mounting
Technical Specification:

• Due to its unique design also help to absorb high frequency vibration & noise
• Zinc Plated metal & fully adjustable height
• Easily bolted to supporting structure or can freely kept on 6mm ribbed rubber pad
• It ensures the stability because of its horizontal stiffness is at least 100% of its vertical stiffness
• It gives maximum effciency due to no snubbing
• Nominal 20,25 & 50-mm deflection color coded spring with 50% overload capacity

• In open spring mounting designed in such a way that it’s both ends are fixed with integral rubber which allows it to use without rubber pads.
• Applications: Axial & Centrifugal Fans, Pumps, generating sets, Chillers, Air Handling Units, etc
