INSERA - ENCAPSULATED INSULATION PADS
- INSERA® Encapsulated insulation pads are ceramic wool wrapped in readymade bags.
- It has excellent acoustic properties, low thermal conductivity & available in two thicknesses.
- It is used for Thermo-Acoustic purpose, where good sound absorption is required to prevent echo inside the room & minimum heat transfer is required to reduce energy costs by reducing energy consumption & ultimately providing human comfort.
- It is highly durable, completely inorganic with no added organic constituents & binders.
| Brief Description | INSERA® Encapsulated insulation pads is a ceramic wool wrapped in readymade bag which is three side machine stitched and one side open end with hook and loop fasteners. This specific grade is used for thermo-acoustic applications. |
|---|---|
| Material Type | INSERA® Encapsulated insulation pads has excellent sound absorption property & good thermal resistance |
| Color | Black |
| Applications | False ceiling insulation, Home theatre/studio, Metal Roof, Trap Door, AHU room etc. |
STANDARD DIMENSIONS:
| Density | Thickness | Width | Length |
|---|---|---|---|
| 64 kg/m³ | 25 & 50 mm | 600 mm | 600 mm |
THERMAL CONDUCTIVITY (K VALUE) TABLE (AS PER IS 15402/IS 3346):
| Mean Temperature (°C) | 25 | 35 | 50 |
| Thermal Conductivity (W/m.K) | 0.035 | 0.037 | 0.041 |
THERMAL RESISTANCE (R VALUE) TABLE:
| Mean Temperature (°C) | 25 | 35 | 50 |
| Thermal Resistance (ft².hr.°k/BTU) [For 25 mm thickness] | 4.055 | 3.836 | 3.462 |
| Thermal Resistance (ft².hr.°k/BTU) [For 50 mm thickness] | 8.11 | 7.67 | 6.924 |
ACOUSTIC PERFORMANCE:
- The absorption coefficients at different frequencies (1/3 octave band) in accordance with IS 8225/ISO 354/ASTM 4230.
| Frequency (Hz) | Sound Absorption Coefficient (SAC) | NRC | Sound Absorption Class | |
|---|---|---|---|---|
| 100 | 0.55 | |||
| 150 | 0.83 | |||
| 160 | 0.73 | |||
| 200 | 0.69 | |||
| 250 | 0.85 | |||
| 315 | 1.00 | |||
| 400 | 1.07 | |||
| 500 | 1.09 | |||
| 630 | 1.12 | |||
| 800 | 1.04 | |||
| 1000 | 1.06 | |||
| 1250 | 0.98 | 1.0 | Class A | |
| 1600 | 0.97 | |||
| 2000 | 0.93 | |||
| 2500 | 0.95 | |||
| 3150 | 0.95 | |||
| 4000 | 0.94 | |||
| 5000 | 0.90 | |||
FEATURES:
- light Weight
- Good Sound Absorption
- Low thermal conductivity
- Good acoustic & thermal property
- Good STC value
- Asbestos free
INSERA® ENCAPSULATED INSULATION PADS APPLICATION AREA

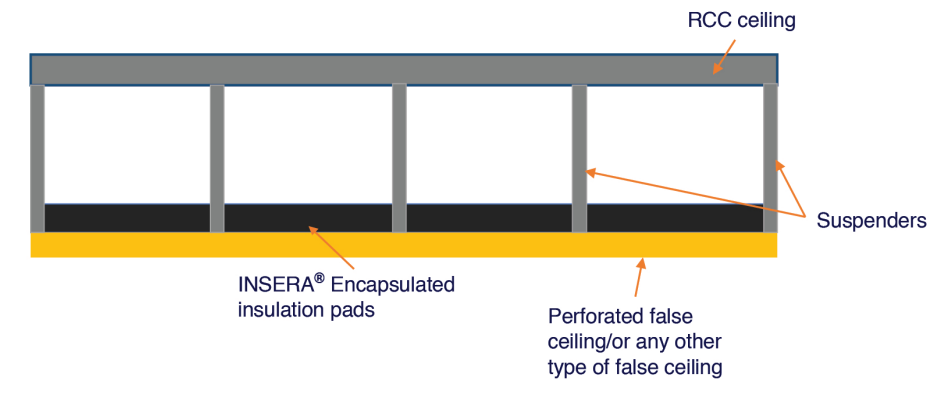

FALSE CEILING INSULATION APPLICATION:-
- False ceiling contributes to aesthetics of a ceiling of a room. In various rooms for example, conference room, library, private cabins etc. where a good hearing ambience is required. So false ceiling should be properly insulated to prevent echo inside the room.
- INSERA® Encapsulated insulation pads shall be kept directly over perforated false ceilings of gypsum, mineral fibre etc. to create a proper hearing ambience inside the room for the occupants by preventing echo.
- If these rooms are exposed to terrace then there are chances that the heat transfer can take place from ceiling to the room which will increase the energy consumption of the air conditioning room.
- INSERA® Encapsulated insulation pads will help to reduce the heat transfer inside the room from the ceilings & energy consumption can be reduced & it helps in providing human comfort.

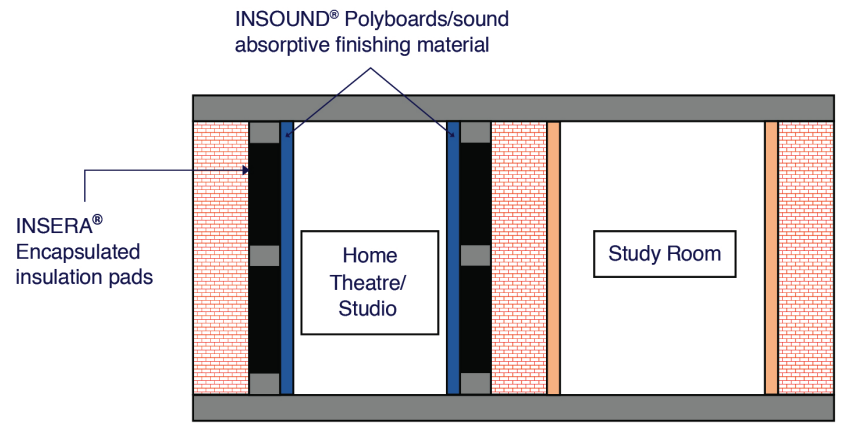

HOME THEATRE/STUDIO APPLICATION:
- Home theatres are meant to be built for entertainment purpose. But if they are not insulated proper acoustically then there are chances that echo develops inside the theatre creating inappropriate hearing ambience inside it for the occupants.
- Also, there are chances of sound transmitting from the theatre to other rooms; hence it should be properly insulated to not allow the sound to transmit to other rooms.
- INSERA® Encapsulated insulation pads having good sound absorption coefficient & Good STC value shall be fixed on the wall of the Home theatre along with the finishing material such as INSOUND® polyboards such that it will create a proper hearing ambience inside the home theatre & will also restrict sound transmitting from the theatre to other rooms.
- Recording studios are built in such a way that it could block any kind of unwanted sound coming from the outside as well prevent echo inside the studio to create a proper acoustic ambience inside it & can solve the purpose for which it is meant for.
- INSERA® Encapsulated insulation pads having good sound absorption coefficient & Good STC value shall be fixed on the walls of the Recording studio along with the finishing material such as INSOUND® polyboards such that it will prevent echo inside the studio & will also restrict the transmission of sound from outside to inside of studio.
- INSERA® Encapsulated insulation pads having low thermal conductivity will also help to reduce the heat transfer inside the Home Theatre/Recording Studio from the walls, reducing energy consumption & helps in providing human comfort.

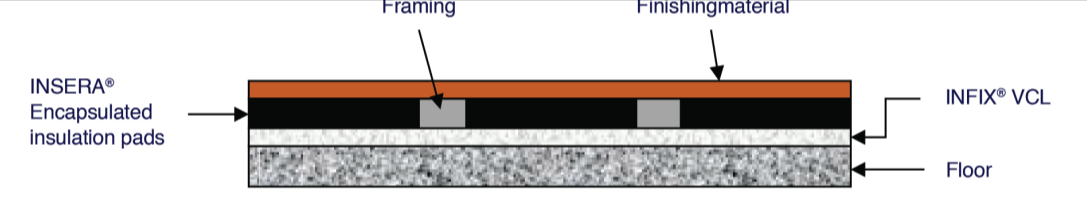

FLOOR INSULATION APPLICATION
- In various residential & commercial applications, in order to reduce floor noise, acoustic insulation materials are installed to reduce sound transmission significantly from one floor to other.
- INSERA® Encapsulated insulation pads having good sound absorption coefficient & Good STC value shall be fixed on the floors of these buildings with the help of wooden/metal framing to reduce sound transmission providing a quite living or working environment.

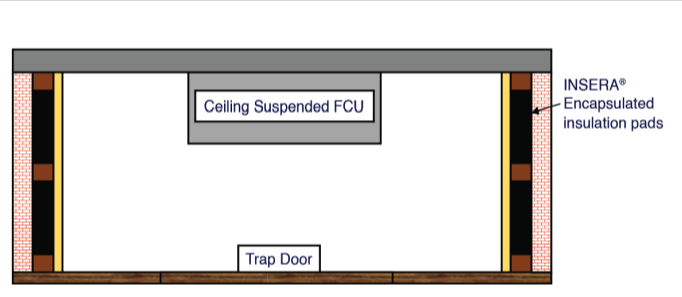

TRAP DOOR APPLICATION:
- Trap door is hinged/sliding door in a floor or ceiling where Fan Control Unit (FCU) is concealed.
- Trap door acoustic insulation ensures absorption of the noise generated by FCU. This is done in order to not let the noise of the FCU transmitted to other side of trap door.
- It also reduces vibrations transmitted from installation area.

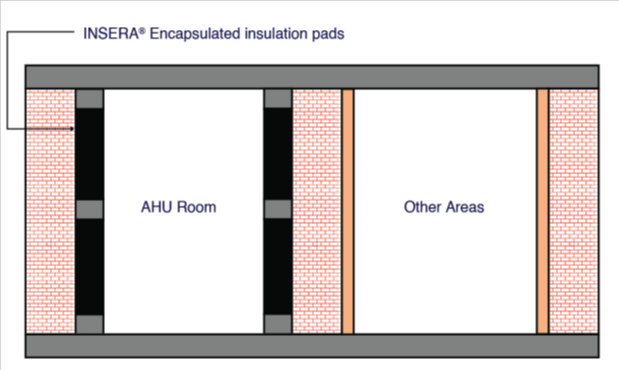

AHU ROOM APPLICATION:
- There is an AHU room where Air Handling Unit (AHU) is placed and it generates a lot of noise. This Sound is transmitted to other rooms and creates discomfort among occupants in other rooms.
- INSERA® Encapsulated insulation pads shall be fixed on the wall of an AHU room to reduce the sound transmission & makes the surrounding comparatively noise free.
- AHU placed inside of a room can generate heat. The use of INSERA® Encapsulated insulation pads is adding advantage in reduction of heat transfer from that room to other room by applying it on the wall and acting as a thermal barrier between two rooms which helps in maintaining comfort level inside of other rooms.

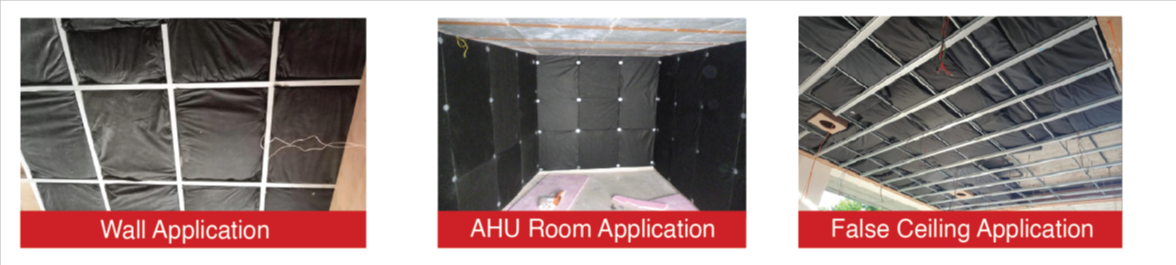

APPLICATION PHOTOGRAPHS:
