RIGID POLYURETHANE FOAM SLAB,
PIPE INSULATION AND PIPE SUPPORT
- Rigid Polyurethane foam is used as Building Thermal Insulation in under-deck & over-deck insulation, wall insulation, roof insulation, floor insulation, false ceiling, pipe insulation, etc.
- It is environment friendly (CFC and HCFC Free, Zero ODP, Low GWP) closed cell rigid foam insulation. Its cellular structure has over 90% closed cells.
Facings
Rigid polyurethane foam thermal insulation products are used unfaced / faced with flexible FSK, Aluminium Foil, Kraft Paper, Bituminous Kraft Paper, Fibre Glass Tissue, Reinforced Aluminium Paper etc.

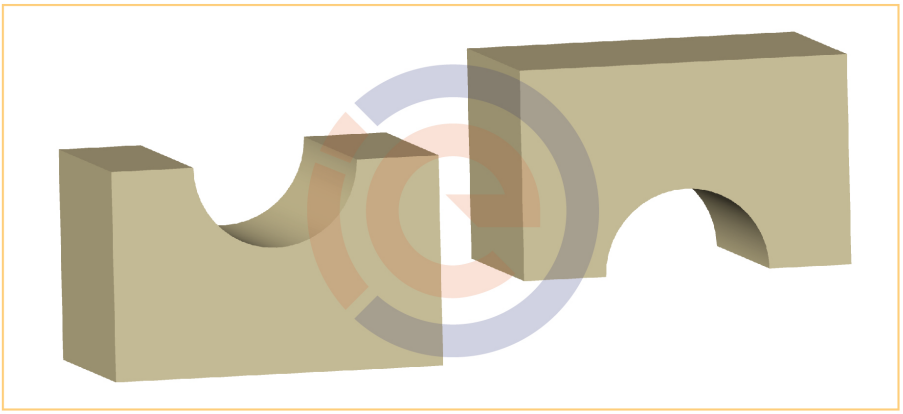

STANDARD DIMENSIONS FOR PIPE SUPPORT
- 15NB to 500NB X Two Half Sections with min. Thicknesses from min 25MM to max 100MM in single layer.
- Sizes above 500NB and up to 1000NB can be made in multiple sections and Multi-Layer Sections for all sizes are also available.
TECHNICAL SPECIFICATIONS FOR PIPE SUPPORT
| Sr. No. | Properties | Expected Values (IS 12436 / ASTM C591) |
|---|---|---|
| 1 | Density | 120 Kg/m³ - 500 Kg/m³ |
| 2 | Operating Temperature | -183°C to +149°C |
| 3 | Compressive Resistance at 10% Deformation (min) | 120 Kg/m³ (1000 kpa), 240 Kg/m³ (3000 kpa), 320 Kg/m³ (6000 kpa), 500 Kg/m³ (14000 kpa) |
| 4 | Water Absorption | 5% |
| 5 | Water Vapour Permeability (max) | 0.8 g/m².h |
| 6 | Close Cell Content (min) | 95% |
| 7 | Chlorides (max) | 60 ppm |
| 8 | pH Values | 6-7 |
THERMAL CONDUCTIVITY FOR PIPE SUPPORT
| Density (Kg/m³) | 240 | 320 | 500 |
|---|---|---|---|
| Thermal conductivity @ 0°C | 0.036 | 0.046 | 0.071 |
| Thermal conductivity @ 20°C | 0.040 | 0.050 | 0.074 |
ENVIRONMENTAL AND BIOLOGICAL COMPLIANCE
| Environmental & Green Building Compliance | CFC & HCFC free, Zero ODP, Low GWP, Asbestos & odour free, Corrosion and chemical resistant |
| Biological Compliance | Fungi & Bacteria resistant |
FEATURES
- Light Weight
- High Compressive And Flexural Strength
- Imperishable
- Green Building Requirement Compliance
- CFC And HCFC Free
- Lower U-value
- Higher
- Lower K-value
- Zero ODP
- Low GWP
- Low Water Vapour Transmission
- No Fungus Growth
- Uniform Density
- Closed Cell Structure
- Excellent Thermal And Dimensional Stability
- No Corrasion
- Space Saving
- Low Handling Cost
- Low Installation Time Required
- Lower Thermal Conductivity Of PUF Insulation
- High Energy Cost Savings
APPLICATIONS
- Pipe & Tank Insulation
- Under Deck & Over Deck Insulation
- Roof & Floor Insulation
- Wall & Ceiling Insulation
- Residential & Commercial Insulation
- INPUF pipe supports are installed over the pipes where regular insulation cannot be installed.
- Cold Storages & Cold Rooms
- Refrigerated Truck & Transportation
- Automobiles
- Industries
- Food Processing Units
- Shopping Malls
- Malls Auditoriums
- Theatres
- Sport Clubs
