RIGID POLYURETHANE FOAM SLAB,
PIPE INSULATION AND PIPE SUPPORT
- Rigid Polyurethane foam is used as Building Thermal Insulation in under-deck & over-deck insulation, wall insulation, roof insulation, floor insulation, false ceiling, pipe insulation, etc.
- It is environment friendly (CFC and HCFC Free, Zero ODP, Low GWP) closed cell rigid foam insulation. Its cellular structure has over 90% closed cells.
Facings
Rigid polyurethane foam thermal insulation products are used unfaced / faced with flexible FSK, Aluminium Foil, Kraft Paper, Bituminous Kraft Paper, Fibre Glass Tissue, Reinforced Aluminium Paper etc.
STANDARD DIMENSIONS FOR SLABS AND PIPES
| Product | Width / ID | Thickness | Length |
|---|---|---|---|
| Slabs | 0.5 m to 1 m | 15 mm to 300 mm | 1 m |
| Pipes | 0.5” to 50” | 25 mm to 100 mm | 1 m |

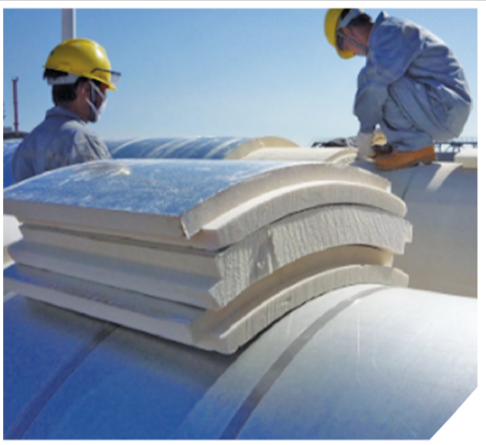

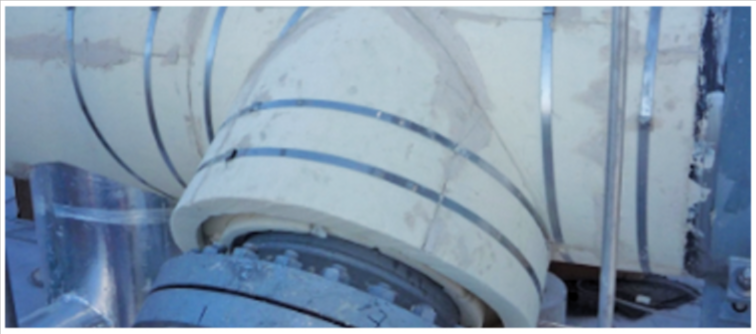

Above 8″ diameter pipe insulation available in 4-6 segments & higher thickness pipes available in multi-layers.
TECHNICAL DATA FOR SLABS AND PIPES
| Chemical Composition | Rigid polyurethane foam (Thermosetting Polymer composed of closed cell structure with urethane links) based on Methylene Di-Phenyl Di-Isocyanate (MDI), Polyol and low thermal conductivity blowing agent chemical systems. |
|---|---|
| Service Temperature Range | -40°C to 110°C |
| Overall Foam Density | 36 Kg/m³ ±10% |
| Initial Thermal Conductivity (K-Value) | 0.023 W/m °K (Max) at 10°C Mean Temp. |
| Compressive Strength at 10% Deformation | 115 KN/m² (Min) |
| Water Vapour Transmission (Permeability) | 5.5 ng/pa.s.m (Max) |
| Closed Cell Content | 90% (Min) |
| Horizontal Buming | 125 mm (Max) |
| Dimensional Stability | 2% at 100 °C (Max) |
Finished Product Confirms To IS:12436, PUR-1 Grade Specification.
THERMAL RESISTANCE (R-VALUE) FOR SALBS AND PIPES
| Thickness (mm) | R-Value (m².K/W) | R-Value (hr*ft²*°F/Btu) |
|---|---|---|
| 25 | 1.08 | 6.17 |
| 30 | 1.3 | 7.40 |
| 35 | 1.52 | 8.64 |
| 40 | 1.73 | 9.87 |
| 45 | 1.95 | 11.10 |
| 50 | 2.17 | 12.34 |
| 75 | 3.26 | 18.50 |
| 100 | 4.34 | 24.64 |
ENVIRONMENTAL AND BIOLOGICAL COMPLIANCE
| Environmental & Green Building Compliance | CFC & HCFC free, Zero ODP, Low GWP, Asbestos & odour free, Corrosion and chemical resistant |
| Biological Compliance | Fungi & Bacteria resistant |
FEATURES
- Light Weight
- High Compressive And Flexural Strength
- Imperishable
- Green Building Requirement Compliance
- CFC And HCFC Free
- Lower U-value
- Higher
- Lower K-value
- Zero ODP
- Low GWP
- Low Water Vapour Transmission
- No Fungus Growth
- Uniform Density
- Closed Cell Structure
- Excellent Thermal And Dimensional Stability
- No Corrasion
- Space Saving
- Low Handling Cost
- Low Installation Time Required
- Lower Thermal Conductivity Of PUF Insulation
- High Energy Cost Savings
APPLICATIONS
- Pipe & Tank Insulation
- Under Deck & Over Deck Insulation
- Roof & Floor Insulation
- Wall & Ceiling Insulation
- Residential & Commercial Insulation
- INPUF pipe supports are installed over the pipes where regular insulation cannot be installed.
- Cold Storages & Cold Rooms
- Refrigerated Truck & Transportation
- Automobiles
- Industries
- Food Processing Units
- Shopping Malls
- Malls Auditoriums
- Theatres
- Sport Clubs
