FLEXIBLE INSULATION DUCTS
Environment Friendly AHU & HVAC Solutions
- Top quality solutions for all your HVAC construction needs. Two distinct cores serve a range of pressure requirements from residential to medium commercial systems.
- Flexible duct products for both residential and commercial HVAC applications that provide the most economical solution to your air-handling needs.
- Formaldehyde-free insulation for improved indoor air quality.
Available as
1) Insulated Flexible Duct
2) Non Insulated Flexible Duct
Flexible Duct
- Flexible ducting or 'Flex', is used to transport hot or cold air from the unit into your home and vice versa through the grills or diffusers.

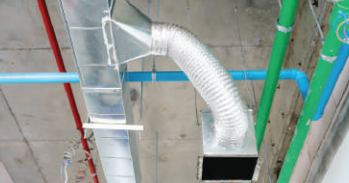

- It is highly convenient for attaching supply air outlets to rigid duct work with long zip ties or metal band claps.
- Flexible ducts can speed up installation by reducing the number of joints in a run and eliminating the need for elbows and offsets.
- It is multiple aluminium, polyester laminated ducting with an encapsulated high tensile steel wire helix.
- Easy to install over round or oval ducting due to high flexibility.
- No special tools required for cutting or fixing.
- Tested for Fire Resistance. No toxic gas emission in case of fire.
- Lower cost due to faster installation, transport and logistics.
INSULATED FLEXIBLE DUCT - TECHNICAL DETAILS
| Inner Construction Material | Inner core is formed of laminated strong polyester film and encapsulated with a heavy, corrosion resistance steel wire helix, and supports a thick blanket of fiberglass insulation. |
| Outer Construction Material | The outer vapour barrier is a bi-directional reinforced metalized vapour barrier that will not unravel. |
| Insulation Thickness | 25 mm, 38 mm and 50 mm |
| Insulation Density | 16 Kg/m³ and 24 Kg/m³ |
| R-value | 4.2, 6 and 8 ft²°Fhr/BTU |
| Max. Positive Pressure Rating | Diameter 4” to 16” -10” WG, Diameter 18” to 20” -6” WG |
| Max. Negative Pressure | Diameter 4” to 20” -1/2” WG |
| Max. Velocity | 5000 fpm |
| Temperature Range | -20°F to 250°F |
| Fire Properties | Fire spread index - less than 25, Smoke developed index - less than 50 |
| Vapour Transmission Rating | 0.1 US Perm |
| Standard Length | 16.4 ft (5 meter) |
| Diameter-ID | 4” to 20” |
| Insulated | Yes |
NON INSULATED FLEXIBLE DUCT - TECHNICAL DETAILS
| Inner Construction Material | Inner core is formed of laminated strong polyester film and encapsulated with a heavy, corrosion resistance steel wire helix. |
| Outer Construction Material | The outer vapour barrier is a bi-directional reinforced metalized vapour barrier that will not unravel. |
| Max. Positive Pressure Rating | Diameter 4” to 16” -10” WG, Diameter 18” to 20” -6” WG |
| Max. Negative Pressure | Diameter 4” to 20” -1/2” WG |
| Max. Velocity | 5000 fpm |
| Temperature Range | -20°F to 250°F |
| Fire Properties | Fire spread index - less than 25, Smoke developed index - less than 50 |
| Vapour Transmission Rating | 0.1 US Perm |
| Standard Length | 16.4 ft (5 meter) |
| Diameter - ID | 4” to 20” |
| Insulated | No |
APPLICATIONS AND BENEFITS

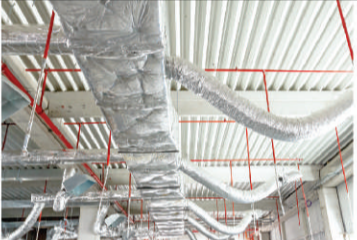

- INFLEX® insulated/non insulated flexible ducts are thermally insulated, fully-lined, designed for low-to-medium pressure cooling and heating HVAC systems. It can be used in supply or return sections and is an economical solution for handling misalignment between system components and ducting around obstacles where fabricated & fitted Gl ducts are difficult and costly to use.
- It is equally suitable for new jobs or retrofit works and especially useful for system extensions or changing conditioned zones, now or in the future. Compliance to NFPA standards allows overcoming the 14" length limitation in Connection for fire and flame safety in ducting systems.
- It is a highly efficient part of total duct system because the smooth liner, the ample insulation and tough outer vapour barrier provide excellent air flow, thermal insulation and double air seal.
- It's widely used in short term installation projects where installation is to be done swiftly.
FEATURES
INFLEX® strives to satisfy not only contractors, engineers and consultants but also the end users & their Indoor Air Quality (IAQ).
- Highly Energy Efficient & Thermally Stable
- Good Acoustic Performance
- Fire Retardant Materials Used In Construction
- Easily Expands Over Fittings
- Even Airflow
- Easy Installation
- Low Maintenance
- Durable Finish
- Weather Resistant
- Tear And Puncher Resistant
- Minimum Friction Loss
- Highly Resistant To Microbial Growth
- Light Weight
- Convenient Packaging & Handling
- Extremely Strong
- Corrosion Resistant
- High Tensile Strength
- Dimensionally Strong
- Minimum Friction Loss
