DESCRIPTION OF MATERIAL
INFIXT™ VCL is self adhesive protecting material having 5mm x 5mm mesh size, made from the composition of Aluminium Foil, Glass Scrim & LDPE.
TECHNICAL DATA
| Properties | Value / Assessment |
|---|---|
| Backing Material | Aluminium Foil + Glass Scrim + LDPE |
| Adhesive System | Acrylic Adhesive |
| Backing Thickness | 140 micron |
| Total Thickness | 165 micron |
| Air Permeability | 0% |
| Tensile Strength kg/50mm | 8.4 kg/50mm |
| Elongation | 3.36% |
| Adhesive to Steel | 500 g/cm |
APPLICATION
INFIX™™ VCL can be used as a jacketing material for
- Piping Insulation of Hot & Cold Fluid
- VRV/VRF Refrigerant Piping Insulation
- HVAC Ducting Insulation
- Process Industry Pipe & Equipment Insulation
- Process Industry Pipe & Equipment Insulation
- Vessel Insulation
- Cold room/cold storage wall (1st layer before insulation can be applied & after insulation to seal the surface & joints)
- Cold room/cold storage floor
FEATURES
- Excellent moisture barrier
- Good radiant heat resistance
- Lightweight
- Easy installation
- Good aesthetics
INFIX TM VCL APPLICATION AREAS:
WALL & FLOOR:
- Moisture gets trapped in wall/floor of any area is due to poor ventilation, low temperature (cold rooms) and rain water ingress, plumbing lines leakages (generally in basement area), etc. This moist surface over wall/floor leads to fungal growth and reduces life of construction.
- INFIX TM VCL is self adhesive and can be directly applied to wall and floor surface for moisture control purpose before further application of other layers of insulation material.

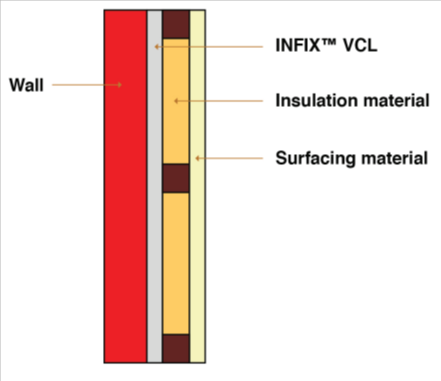

1) BASEMENT WALL:

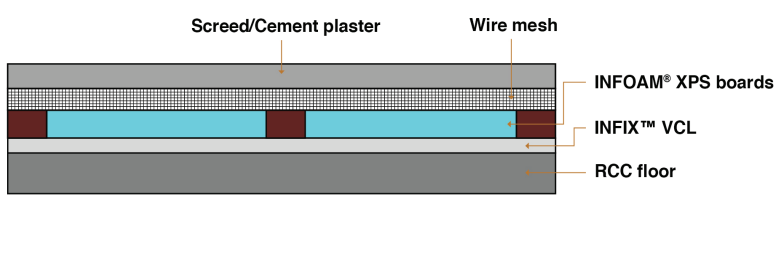

2) BASEMENT/ COLD ROOM/ COLD STORAGE FLOOR

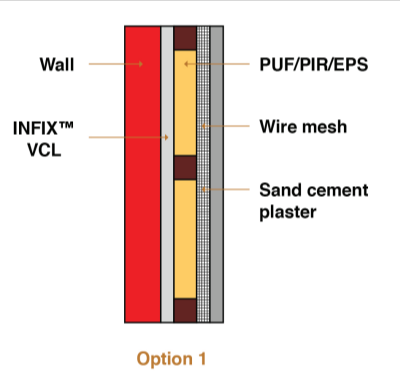

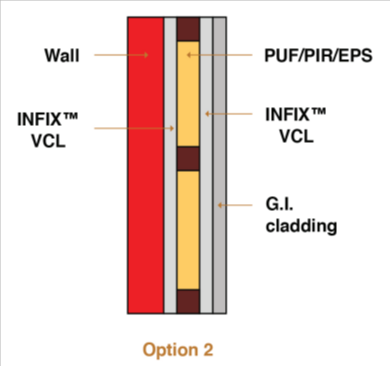

3) COLD ROOM/ COLD STORAGE WALL :

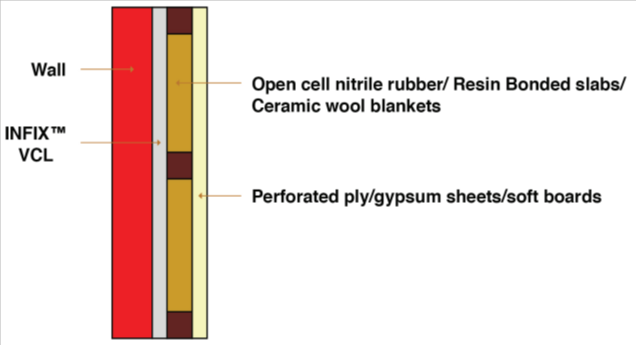

4) HOME THEATRE/STUDIO/CONFERENCE ROOM/BANQUET HALL WALL :
PROTECTIVE LAYER FOR INSULATION MATERIAL:
- INFIX™ VCL can be used as a protective layer over insulation material applied over piping/ducting. It will act as a moisture barrier and radiant heat resistant layer.
- INFIX™ VCL also provides additional benefit of aesthetics due to its outer look of aluminium foil.
Note: This product is to be used for indoor applications only. It is not suitable for direct exposed applications (Open to sky). It can be used before applying cladding in exposed applications.

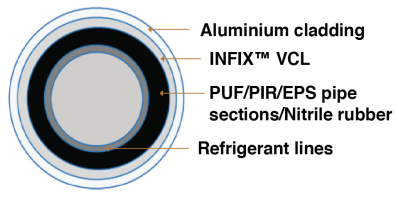

1). VRF REFRIGERANT LINES (INDOOR):
2). VRF REFRIGERANT LINES (OUTDOOR):
3). CHILLED WATER LINES (INDOOR/OUTDOOR):

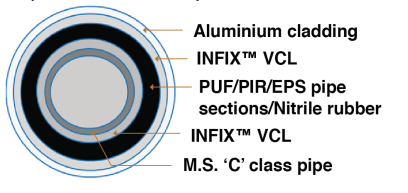

4). BRINE LINES [-5 °C/-10 °C/-20 °C] (INDOOR/OUTDOOR):

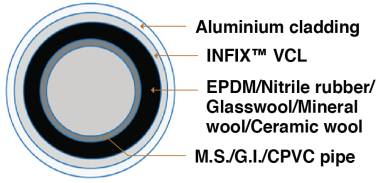

5). HOT WATER LINES (INDOOR/OUTDOOR):
6). HOT WATER LINES (SOLAR PIPES) (INDOOR/OUTDOOR):

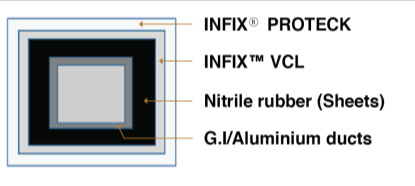

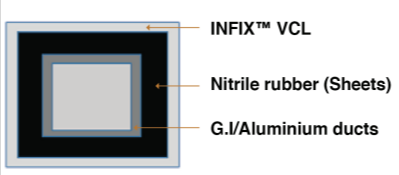

7). SUPPLY/RETURN AIR DUCTS (INDOOR):
8). SUPPLY/RETURN AIR DUCTS (OUTDOOR):
