DESCRIPTION OF MATERIAL:

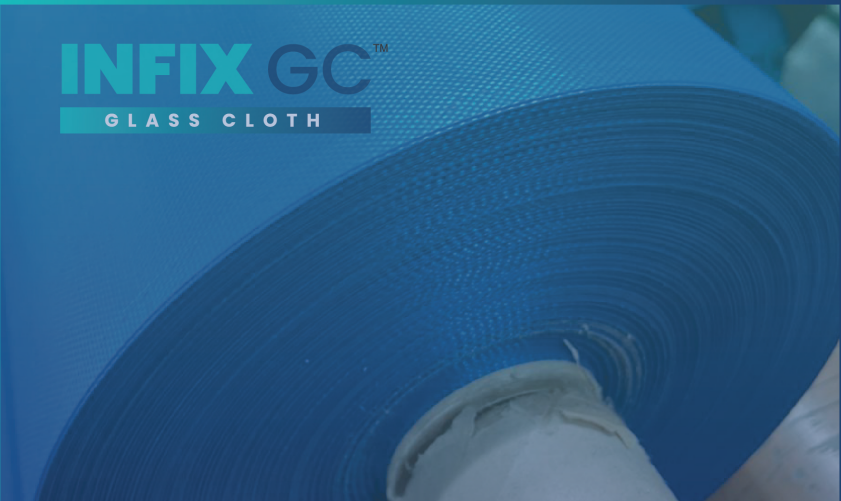

INFIX GC® ilt is acrylic based woven fiberglass fabric made from E glass having excellent combination properties of high strength & moisture resistance which is used as a jacketing (covering) of insulation material.

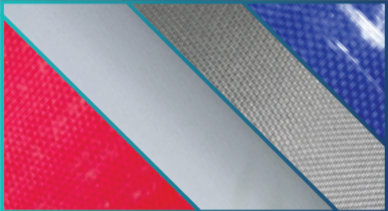

COLOR : Black, Red, Green, Blue, Grey & White
APPLICATION : Moisture resistance jacketing layer (covering) for insulation material.
Color
- Available in Black, Red, Green, Blue Grey & White
Base Fabric Mass (GSM)
- 225 ± 5%
Width (mm)
- 1240 ± 10
Thickness (mm)
- 0.19 ± 0.02
Fiber Type
- E - GLASS
Adhesive Type
- Acrylic - PSA
PSA Mass (GSM)
- 50 ± 5%
Total Mass (GSM)
- 280 ± 5%
Properties
- Dimensional Stability
- High Strength
- Fire Resistance
- Chemical Resistance
- Electrical Resistance
- Thermal Resistance
Properties
USED AS A JACKETING MATERIAL FOR:

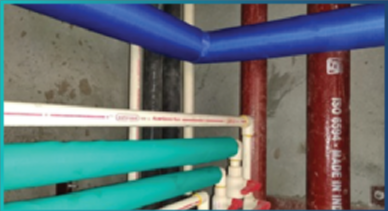

- Hot & cold water piping insulation
- Chilled Water Piping Insulation
- VRV/VRF Refrigerant Piping Insulation
- HVAC Ducting Insulation
- Process Industry Pipe Work & Equipment Insulation
- Vessel Insulation
