DESCRIPTION OF MATERIAL
- INFIX™M BGT is a self protecting material having excellent porosity made from randomly orientated black glass fibres.
| Brief Description | Black Tissue is a black non-woven felt made of randomly oriented glass fibres distributed in a special binder by a wet-lay process . |
|---|---|
| color | Black |
| Applications | Auditoriums, Theatres, Conference Rooms, Gyms, Recording Studios, Corporate Office, Hotels, Call Centers, Home Theatres, Pubs |
STANDARD DIMENSIONS
| Thickness(mm) | Length(m) | Width(m) |
|---|---|---|
| 0.37 | 300 | 1.2 |
TECHNICAL DATA
| Sr. No. | Test as per AWWA C-203-91 | Unit | Value Obtained |
|---|---|---|---|
| 1 | Weight | Gm/sq.mtr. | 55 |
| 2 | Thickness | mm | 0.37 |
| 3 | Breaking strength (a) Longitudinal |
N/M | 6139 |
| (b) Transverse | N/M | 1524 | |
| 4 | Tear Strength (a) Longitudinal |
gm | 136 |
| (b) Transverse | gm | 158 | |
| 5 | Porosity | mm | 1.2 |
| 6 | Pliability | - | No Crack |
| 7 | Temperature Resistance | °C | 288 |
INFIXTM BGT Application Areas
- INFIXTM BGT can be used in walls, floors & false ceiling above acoustic insulation material as a lamination.
- Light weight
- Anti bacterial
- Excellent moisture resistance

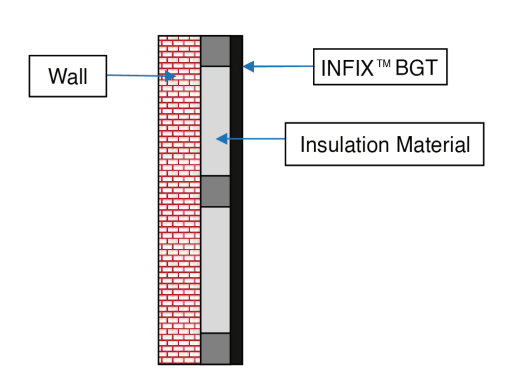

1. WALL INSULATION

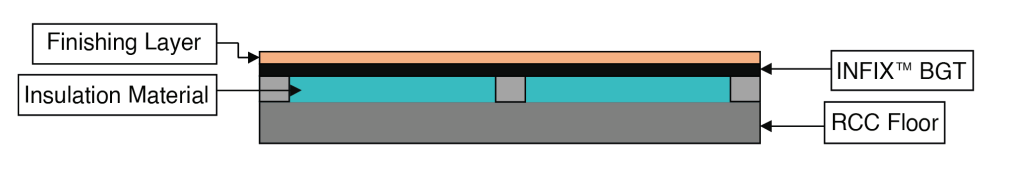

2. FLOOR INSULATION

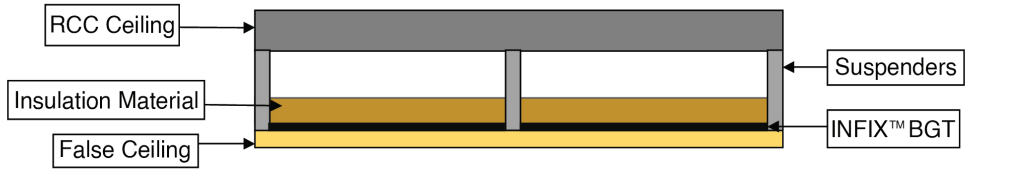

3. FALSE CEILING INSULATION
FEATURES
- Excellent corrosion resistance
- Light weight
- Anti bacterial
- Excellent moisture resistance
- High porosity
- Good aesthetics
- Easy to install
DISCLAIMER:
Technical information and recommendations contained herein are based on properties only as a guide. They do not constitute a product specification nor are they to be construed in any manner as warranties expressed or implied. The user shall determine the suitability of the product for its intended use and the user assumes all risk and liability whatsoever in connection therewith.
