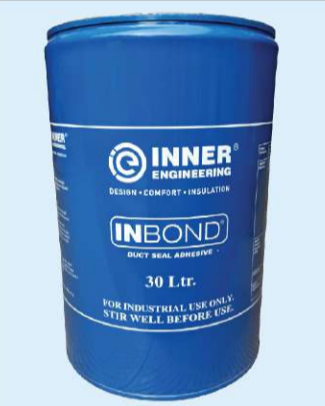

INBOND® - DUCT SEAL ADHESIVE

INBOND® Duct Seal Adhesive is synthetic rubber-based adhesive used for bonding of multiple substrates such as foam, rubber sheet, on metal duct.

ADVANTAGES:

  • Good Adhesion strength
  • Quick drying
  • Easy to apply
Brief Description Strong & flexible complete surface bonding of Elastomeric rubber to Elastomeric rubber & Elastomeric rubber to various galvanized and non-galvanized metal.
Material Type Solvent based low VOC adhesive
Color Light yellow
Packing 30 ltr.
Applications Recommended to bond medium & low thickness of open & closed cell nitrile rubber, EPDM foam and similar elastomeric insulation to itself and over the duct.
Storage & Shelf Life Up to 12 months in original unopened containers when stored indoors & away from direct sunlight. It shall be stored within the temperature range of 5°C to 35°C. Store in cool, dry & ventilated place. Keep away from direct sunlight, extreme temperatures & ignition sources.
Health Aspects Avoid using in closed premises. Ventilation required preventing exposure levels from being exceeded.
Curing Time 24 hrs
Coverage 3-5 square meters per litre.
Density 0.83 ± 0.03 gm/ml
Temperature Range 0°C to 60°C
Fire Property Highly flammable
Combustible Yes
Application Instructions
  • Surfaces to be bonded must be clean, dry and free from dust, oil, etc. with clean cloth or cotton.
  • Before using, stir adhesive thoroughly to ensure mixing of solids which may have settled.
  • Use brush with short stiff bristles. Both surfaces to be bonded be thin coated with adhesive.
  • Do fingernail test after 5 to 10 minutes to check for tack dry before final assembly. If fingernail does not stick to the surface, the joint may be closed.
  • Wet seal before joining where it is not possible to allow the adhesive to tack dry like in butt joints.
  • A wet seal may be made by separating the surfaces, applying a thin film of adhesive and closing joint.
  • Press the surfaces together over the whole area to ensure overall contact.
  • Bonded surfaces can be handled within 1 hour for further process and may be used for normal service after 24 hours of curing time.
  • Do not mix any other solvent such as thinner or water with adhesive.
  • Adhesive to be applied in shadow area only.
Pre-Treatment Of Surface To Be Bonded
  • Clean dirty surfaces with clean cloth or cotton.
  • Compatibility with bases: Very good adhesion to metallic base.
  • Compatibility with colored coated surfaces: Adhesive needs to be tested. Incompatible with Asphalt, bitumen or red lead paint (In seed oil based).

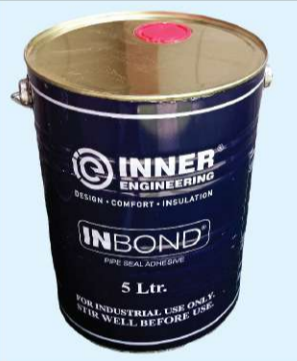

INBOND®- PIPE SEAL

INBOND® Pipe Seal is a synthetic rubber- based bonding of multiple substrates such as foam, rubber sheet on pipes, vessels & tanks.

ADVANTAGES:

  • Good Adhesion Strength
  • Quick Drying
  • Easy To Apply
  • Benzene Free Product.
Brief Description Strong & flexible complete surface bonding of Elastomeric rubber to Elastomeric rubber & Elastomeric rubber to various galvanized and non-galvanized metal, non-metal.
Material Type Synthetic rubber based adhesive.
Color Light yellow
Packing 5 ltr.
Applications Recommended to bond medium & low thickness of open & closed cell nitrile rubber, EPDM foam and similar elastomeric insulation to hot & cold pipe lines, vessels & tanks.
Storage & Shelf Life Up to 12 months in original unopened containers when stored indoors & away from direct sunlight. It shall be stored within the temperature range of 5°C to 35°C. Store in cool, dry & ventilated place. Keep away from direct sunlight, extreme temperatures & ignition sources.
Health Aspects Avoid using in closed premises. Ventilation required preventing exposure levels from being exceeded.
Density 0.85 ± 0.05 gm/ml
Coverage 3-4 square meters of bonded material per litre
Tack Time 2 to 45 min.
Drying Time 20-30 seconds
Temperature Range -20° C to 100° C
Fire Property Highly flammable
Combustible Yes
Application Instructions
  • Surfaces to be bonded must be clean, dry and free from dust, oil, etc. with clean cloth or cotton.
  • Before using, stir adhesive thoroughly to ensure mixing of solids which may have settled.
  • Use brush or spreader. Both surfaces to be bonded be thin coated with adhesive.
  • Do fingernail test after 2 to 3 minutes to check for tack dry before final assembly. If fingernail does not stick to the surface, the joint may be closed.
  • Wet seal before joining where it is not possible to allow the adhesive to tack dry like in butt joints.
  • A wet seal may be made by separating the surfaces, applying a thin film of adhesive and closing joint.
  • Press the surfaces together over the whole area to ensure overall contact.
  • Bonded surfaces can be handled within 1 hour for further process.
  • Do not mix any other solvent such as thinner or water with adhesive.
  • Adhesive to be applied in shadow area only.
Pre-Treatment Of Surface To Be Bonded
  • Clean dirty surfaces with clean cloth or cotton.
  • Compatibility with bases: Very good adhesion to metallic base.
  • Compatibility with colored coated surfaces: Adhesive needs to be tested. Incompatible with Asphalt, bitumen or red lead paint (In seed oil based).
