INAIRFILL

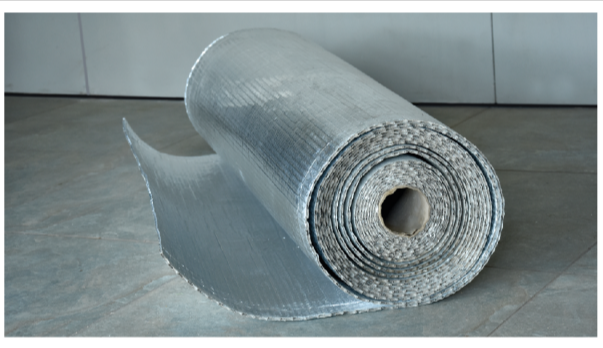

BUBBLE INSULATION
- Thermal Resistant PE bubble insulations are composed of either one or two layers of air bubble sandwiched between two aluminium foil.
- This insulation is rated and tested by reflectivity and emissivity. It is 96% reflective and 4% emissive, which means the product only allows 4% of radiant heat to pass through it. To put it simply, the insulation does not try to slow the way heat passes through it, the insulation tries to eliminate heat from passing through it.
- It is made of pure aluminium foil attached to fire retardant polyethylene bubble sheet using layer bonding thermal process, making it free of adhesive or chemical. Bubble insulation is fiber free and blocks 96% of the radiated heat, that penetrates through a given structure or building.
STANDARD DIMENSIONS
| Thickness (mm) | Width (m) | Length (m) |
|---|---|---|
| 4 & 8 | 1.2 | 40 |
| 12 | 1.2 | 30 |
| 20 | 1.2 | 25 |
SINGLE LAYER BUBBLE INSULATION
Single layer bubble insulation made of one layer of fire retardant air bubble film laminated with pure aluminium foil on both sides. Temperature Range is -50°C to 110°C.
DOUBLE LAYER BUBBLE INSULATION
Double layer bubble insulation made of two layers of fire retardant air bubble film laminated with pure aluminium foil on both sides. Temperature Range -50°C to 110°C.
TECHNICAL DATA
| Product Types | R-value (m²K/W) | Thermal Resistance Emissivity | Thickness (mm) | Temp. Range | Qty/Roll (m²/Roll) |
|---|---|---|---|---|---|
| Single Layer Bubble Insulation | 1.17 | 0.04-0.05 | 4 mm | -50°C to 110°C | 48 |
| Double Layer Bubble Insulation | 1.27 | 0.03-0.04 | 8 mm | -50°C to 110°C | 48 |
| Triple Layer Bubble Insulation | 1.98 | 0.03-0.04 | 12 mm | -50°C to 110°C | 36 |
| Double Layer Bubble Insulation | 2.35 | 0.03-0.04 | 20 mm | -50°C to 110°C | 30 |
Class “A” as per ASTM E-84, Al foil thickness: 12 microns
PACKING LIST
| Product Name | Bubble Size | Dimension of Roll | Reflectivity | Total Thickness |
|---|---|---|---|---|
| Single Layer Bubble Insulation | (10 mm × 4 mm) × 1 | 1.2 m × 40 m | 95% | 4 mm |
| Double Layer Bubble Insulation | (10 mm × 4 mm) × 2 | 1.2 m × 40 m | 97% | 8 mm |
| Triple Layer Bubble Insulation | (10 mm × 4 mm) × 3 | 1.2 m × 30 m | 97% | 12 mm |
| Double Layer Bubble Insulation | (30 mm × 10 mm) × 2 | 1.2 m × 25 m | 97% | 20 mm |

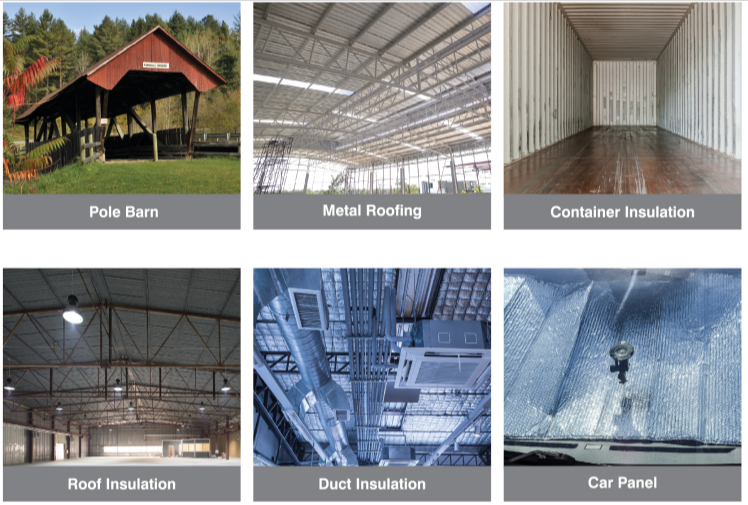

APPLICATIONS
- Metal Building
- Pole Barn
- Crawl Space
- Roof
- Celling
- Wall System
- Basement
- Garage
- Freezer
- Car Panel
- Works Well In Both Extreme Cold And Hot Climate
- An extremely cost effective Thermal Insulation Material for PEB - Insulation, HVAC - Insulation, Reflective - Insulation, Building - Insulation.
